SHC 200

Thematerial of stainless steel insert bearings are AlSI 440 and AISI 420, and usingAISI 304, AISI 316 and PBT plastic material to produce the bearing housingWe also produces Zinc Alloy Bearing Units, Pressing Steel Bearing Housingsand Precision Castings.

Key words:

SHC 200

category:

Stainless Steel Insert Bearing

Telephone：

+86-519-86216566

message

contact

Detailed introduction

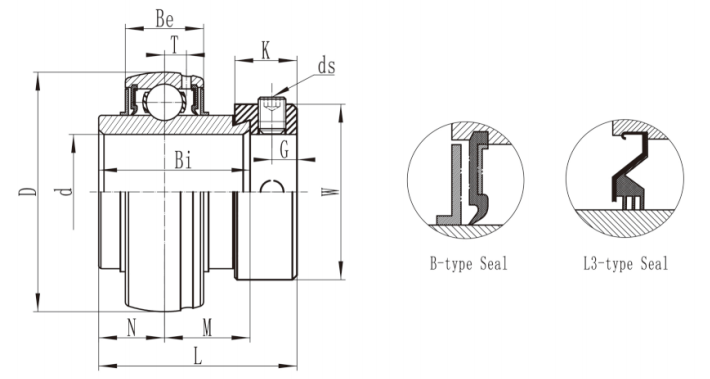

Bearing No.	Bore Dia		Dimensions (mm)											Basic Load Rating (kN)	Basic Static Load Rating (kN)	Weight (kg)
	d		D	Bi	Be	N	M	T	L	W	K	G	ds
	in	mm
SHC201 SHC201-8 SHC202 SHC202-10 SHC203 SHC203-11 SHC204 SHC204-12	1/2 5/8 11/16 3/4	12 15 17 20	47	29.8	16(420) 17(440)	12.7	17.1	4	39.3	33.3	13.5	5	M6x0.75	10.91	5.32	0.22 0.22 0.19 0.19 0.18 0.18 0.17 0.17
													1/4-28
													M6x0.75
													1/4-28
													M6x0.75
													1/4-28
													M6x0.75
													1/4-28
SHC205 SHC205-14 SHC205-15 SHC205-16	7/8 15/16 1	25	52	31.7	17	14.3	17.4	4.2	41.2	38.1	13.5	5	M6x0.75	11.16	6	0.20 0.24 0.23 0.21
													1/4-28
SHC206 SHC206-17 SHC206-18 SHC206-19 SHC206-20	1-1/16 1-1/8 1-3/16 1-1/4	30	62	34.1	19	15.9	18.2	5.0	46	44.5	15.9	6	M8x1	15.81	8.64	0.30 0.35 0.33 0.30 0.27
													5/16-24
SHC207 SHC207-20 SHC207-21 SHC207-22 SHC207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	72	36.3	20	17.5	18.8	5.7	49.8	55.6	17.5	6.5	M8x1	20.83	11.68	0.54 0.60 0.57 0.54 0.50
													5/16-24
SHC208 SHC208-24 SHC208-25	1-1/2 1-9/16	40	80	40.4	21	19	21.4	6.3	53.9	60.3	18.3	6.5	M8x1	23.55	13.6	0.69 0.73 0.70
													5/16-24
SHC209 SHC209-26 SHC209-27 SHC209-28	1-5/8 1-11/16 1-3/4	45	85	40.5	22	19.1	21.4	6.3	54	63.5	18.3	6.5	M8x1	26.35	15.6	0.75 0.90 0.83 0.79
													5/16-24
SHC210 SHC210-29 SHC210-30 SHC210-31 SHC210-32	1-3/16 1-7/8 1-15/16 2	50	90	43.6	24	19	24.6	6.6	57.1	69.9	18.3	6.5	M8x1	28.48	18	1.03 1.17 1.12 1.06 1.00
													5/16-24
SHC211 SHC211-32 SHC211-33 SHC211-34 SHC211-35	2 2-1/16 2-1/8 2-3/16	55	100	49.9	25	22.2	27.8	7.0	65.8	76.2	20.7	8	M10x1.25	35.28	22.4	1.30 1.49 1.42 1.35 1.32
													3/8-24
SHC212 SHC212-36 SHC212-37 SHC212-38 SHC212-39	2-1/4 2-5/16 2-3/8 2-7/16	60	110	61.9	27	31	30.9	7.0	77.8	83	22.3	8	M12x1.25	42.5	27.6	1.60 1.85 1.76 1.67 1.58
													3/8-24
